Introduction

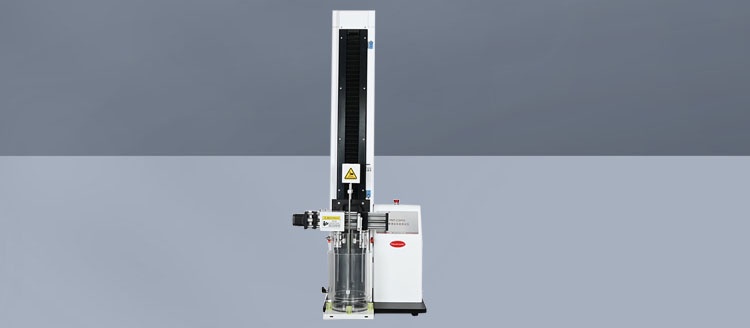

PMT-CSP02 catheter sliding performance tester was developed according to "YY/T 1536-2017 Standard Test Model for Evaluation of non-vascular catheter surface sliding Performance" and "T CAMDI 021-2019 Single-use hydrophilic coating guide wire". It is a high precision test instrument developed for testing the friction performance index of medical human body, external catheter and guide wire. The equipment adopts imported high-precision sensor, high-precision ball screw and unique structural design; ensure the high stability of operation. The test results and curves are accurate and stable, and the stepless speed regulation can meet the requirements of the non-standard test speed. The equipment is widely used in testing institutions and medical device manufacturers.
Features
● Imported microcomputer control technology, open structure, friendly man-machine interface operation, easy to use
● Multiple operating modes can be selected, increasing the fixed force value and positioning shift mode, making the operation more simple and convenient
● High precision screw drive, high-quality stainless steel guide rail and reasonable layout, to ensure the smooth operation of the instrument
● Imported high-precision force sensor, measuring accuracy is better than 0.5
● Precision differential motor drive, more stable transmission, lower noise, more accurate positioning, better repeatability of test results
● LCD Chinese display, automatic measurement, with the test data statistical processing function
● High speed micro printer output, printing fast, low noise, no need to change the ribbon, easy to replace the paper roll
● Built-in special calibration program, easy to measure, calibration department (third party) to calibrate the instrument
● HD color 7-inch touch screen display curves, text, visual clearer
● Can be equipped with computer software, two-way operation (optional)
● Cross alignment adjustment device ensures accurate and reliable test
Technical parameters
| Indicator | Parameter |
| Measuring range | 1kg 5kg 25kg 50kg (select one or more) |
| Unit of measurement | N kg ib |
| Measurement accuracy | ≤0.5 grade |
| Velocity accuracy | 1 ~ 10 mm/min ±1%, 10 ~ 500 mm/min ±0.5% |
| Displacement resolution | The 0.001 mm |
| Minimum resolution | 0.001 N |
| Test stroke | 1000mm |
| Clamping force | 0-10N |
| Flow rate | 10L/min |
| Temperature control range | - 10-80 ℃ |
| Temperature control accuracy | Plus or minus 0.1 ℃ |
| Test speed | 1-500mm/min continuously variable speed |
| Overall dimension | 480 (L) X 560 (B) X 1430 (H) mm |
| Weight | About 90kg |
| Electric source | AC220V±22V, 50Hz |
| Standard configuration | Main engine, water bath temperature control system, clamping system |
| Optional configuration | Computer software, computers |
Configuration list
| Operating system | Parationix |
| Host structure | Parationix |
| Holding device | Parationix |
| Sensor | USA CELTRON*3 |
| High precision ball screw | TBI*1 |
| Stepper motor | Leadshine*3 |
| Water bath temperature control system | HX-4X(customized) |
| Specification | 1 |
| Warranty card | 1 |
| Certificate of conformity | 1 |
| Power cord | 1 |
| Data cable | 2 |
Standards
"YY/T 1536-2017 Standard Test Model for Evaluation of surface sliding Performance of non-vascular catheter", "T CAMDI 021-2019 Single-use hydrophilic coating guide Wire"
