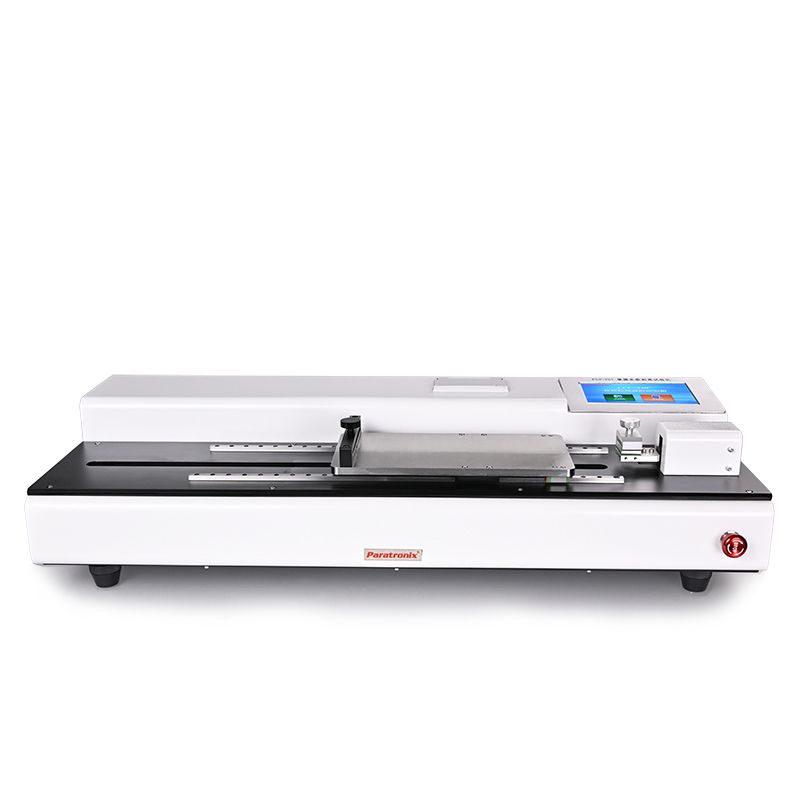

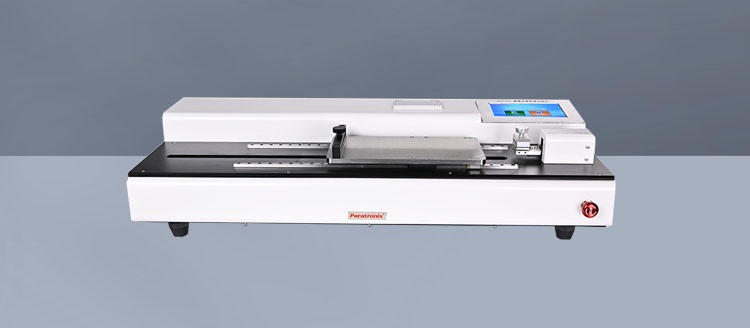

FCF-T01 Friction Peel Tester can be used to test coefficient of static and dynamic friction of plastic films, sheets, foils, paper, cardboard, woven bags, fabric (fabric style test), metal-plastic composite belt for communication cable, convey belt and textile, as well as peel strength test of adhesive laminated products, medical adhesive bandage, release paper and protective films.
Product Features
● The instrument is professionally applicable to coefficient of friction test as well as peel strength test
● The sliding plane and the sled are treated by degaussing and remanence detection which effectively reduce the system errors
● The equipment is controlled by a microcomputer and has a 7-inch touch screen, which is convenient for users to operate and view data
● Precision differential motor drive, more smooth transmission, lower noise, more accurate positioning, better repeatability of test results
● Equipped with a micro printer and a standard RS232 interface, which facilitates external connection and data transmission between the system and the computer
Test Standards
This instruments conforms to multiple international standards ISO 8295, ISO 8510-2, ASTM D1894, ASTM D4917, ASTM D3330, TAPPI T816, TAPPI T549
Technical Specifications
| Item | Parameter |
| Measuring Range | 0.6kg (Customization available) |
| Force Resolution | 0.01 N |
| Displacement Resolution | 0.01 mm |
| Sample Thickness | ≤5mm (other thickness can be customized) |
| Sliding Plate Size | 63×63mm |
| Test Mode | Stripping Test, Coefficient of friction test |
| Display Screen | 7 "(65 million color TFT LCD screen) |
| Sled Mass | 200g, 500g (optional) |
| Bench Size | 120×400mm |
| Digital Display | The dynamic and static coefficient of friction are displayed |
| Measurement Accuracy | Better than 0.5 |
| Sliding Speed | 100, 150mm/min, 1-500mm/min stepless speed (customization available) |
| Sliding Stroke | 500mm (adjustable) |
| Instrument Dimension | 900 (L)X400(W)X200mm (H) |
| Power Supply | AC220V±22V, 50Hz |
| Net Weight | 25kg |
| Environmental Requirement | Temperature: 23±2℃, humidity: 50±5%RH |
| Standard Configuration | Main instrument, micro printer, 200g sled, 180° stripping test fixture |
| Optional | 90° stripping test fixture, thick sample fixture, 500g non-standard sled |
